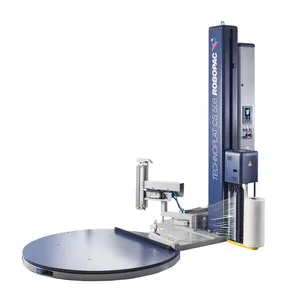

Alpha 601RD
CS certified & H&S compliant
Technical Specifications
| Pallet wrapper: | 150% to 400% stretch ratio |
| Turn table | 1650mm. |
| Maximum wrapping height: | 2200mm |
| Maximum load weight: | 2000kgs |
| Maximum pallet: | 1200 x 1000mm |
| Power supply: | 230V single phase |
| Turn table speed: | 4- 12 RPM |
| Wrapping programs: | 12 |
Wrapping Programs
- Adjustable parameters by the control panel without password cycle
- Both water proof and dust proof wrapping cycles
- Bottom & top wraps – Turn table rotation and film carriage speed up & down wraps are all independent.
- Electronically adjustable, film lay on tension to the pallet.
- Reinforcing wrap 9 levels, that’s programmable
- 5 working cycles;-ascent/decent;- top sheet;- ascent only
- 32 saveable programs Security locked
- 3 working methods;-
- Semi manual & semi-automatic and automatic.
Standard Features
- Variable power stretch ration, 150% to 400%
- Photocell for pallet height detection
- Safety stop on film carriage holder
- Automatic home position for turn- table
- Soft start and soft finish to cycle
- Power Board IP54 (water proofing)
- All adjustable features are set via control panel (which is security locked)
- Self-diagnostic fault finding program
Specification Upgrades
- Turn table options 1.8 or 2.2or 2.4 mtrs
- Mast height options 2.4, 2.8, 3.1 mtrs
- Photo cell for black or dark coloured loads
- Embodiment ring (for sinking into floor)
- Pump truck ramp normal or extended
- Electric truck ramp (heavy duty)
- Brackets to fix ramp to floor
- Clip to tie film on to turn table
- Protection ring (for turn table against fork lift)
- Film applicator and cutting device (air reqd)
- Auto cut
- Roping device one layer
- Roping device multi layers. programable
- Weight scales;- free standing or for pit frame
Health and Safety (Optional)
- Acoustic warning. Start & stop of cycle
- Emergency stop button
- Fall arrestor for film carriage
- Foot protector for film carriage
- 500 mm safety distance between fixed and moving parts
- Health and Safety compliant
- Security cage with door or light guards with hand held remote control
